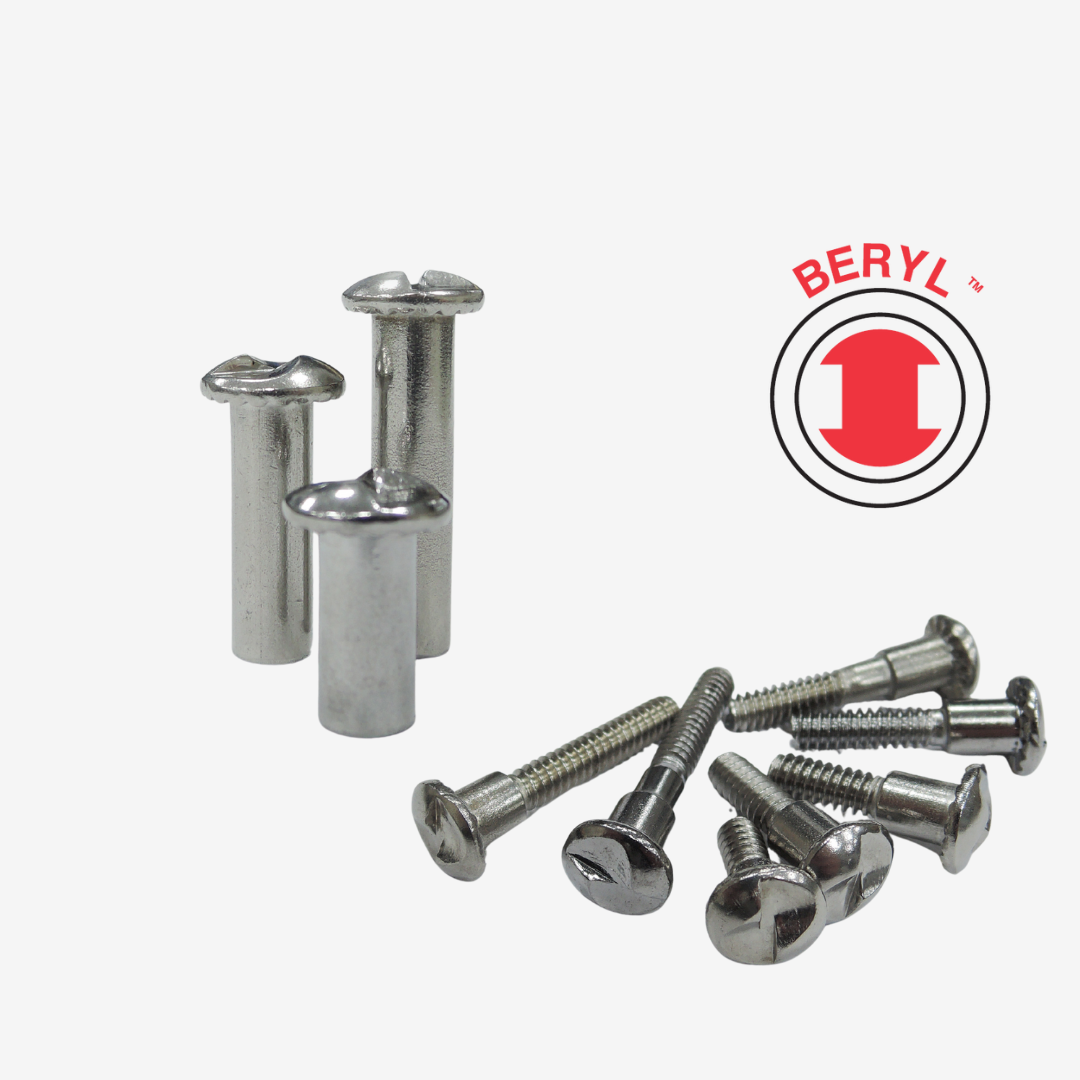

SECURITY FASTENER SERIES: SIX LOBE WITH PIN OR WITHOUT PIN SEX BOLTS

SIX LOBE WITH PIN SEX BOLTS

　

FEMALE NUT　

A ±0.008	H ±0.008	D ±0.004	L ±0.01	G ±0.02	THREAD
0.425	0.125	0.245	0.5	0.377	10-24
0.425	0.125	0.245	0.625	0.5	10-24

(IN INCH)

　

MALE SCREW

A ±0.008	H ±0.008	D1 ±0.003	L ±0.01	L1 ±0.008	THREAD
0.425	0.125	0.236	3/4	0.27	10-24
0.425	0.125	0.236	15/16	0.27	10-24
0.425	0.125	0.236	1 1/16	0.27	10-24
0.425	0.125	0.236	1 3/16	0.27	10-24
0.425	0.125	0.236	1 5/16	0.27	10-24
0.425	0.125	0.236	1 3/8	0.27	10-24

(IN INCH)

MATERIAL AVAILABLE FOR SIX LOBE WITH PIN SEX BOLTS:
STEEL, STAINLESS STEEL , ALUMINUM, BRASS

ADOPT SPECIAL HEAD TYPE AND PUNCH ON THE DESIGN IN SCREW, HAVE SAFE, GUARD TAKE APART AND THEFT, OFFR FUNCTION PROTECTED TO DESTROY TO DEFENDING. GENERAL WRENCH SET IS ALL UNABLE TO DISMANTLE SUCH AS CROSS, STRAIGHT-LINE HEX KEY, TORX KEY ETC.

★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
