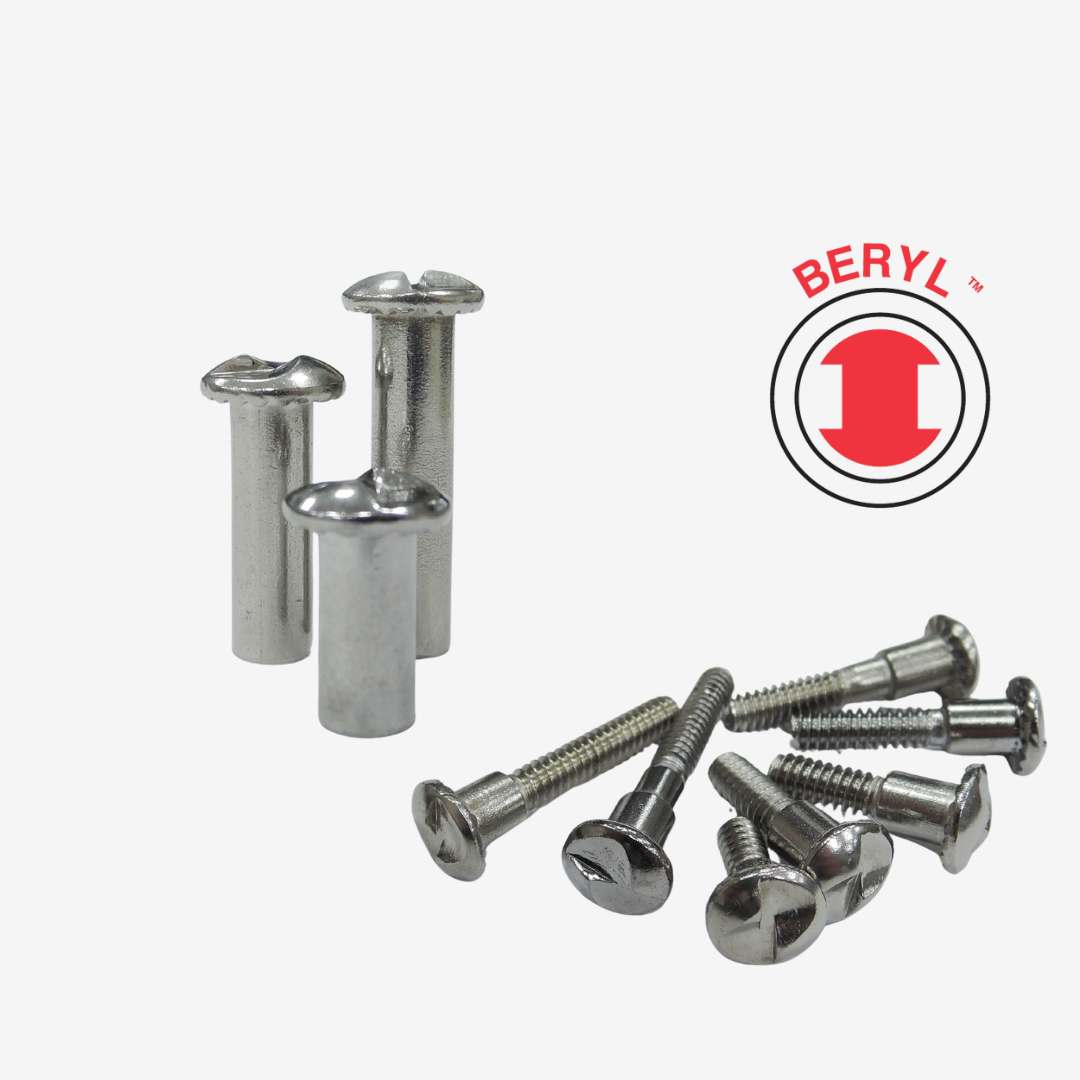

BINDING POST SCREWS
Binding Post also call Chicago screws, Chicago screw posts, bookbinding screws are great for binding your documents. Using one or two holes can replace binders and save precious space when archiving your documents. Place a chicago screw in the corner of your marketing material for a smart, economical and elegant finish. TOP SCREW supply Brass, Steel, Alimunium, and Stainless steel screw .
 | |||||
| #8-32 FLAT HEAD FEMALE NUT/ BLIND THREAD/ ALUMINUM | |||||
| A | H | D | F | L | PART NUMBER |
| 0.394" | 0.078" | 0.197" | 8-32 THREAD | 1/4" | AB8321-14 |
| 5/16" | AB832-516 | ||||
| 3/8" | AB832-38 | ||||
| 1/2" | AB832-12 | ||||
| 5/8" | AB832-58 | ||||
| 3/4" | AB832-34 | ||||
| 1" | AB832-1 | ||||
| 1 1/4" | AB832-114 | ||||
| 1 1/2" | AB832-112 | ||||
| 1 3/4" | AB832-134 | ||||
| 2" | AB832-2 | ||||
| 2 1/4" | AB832-214 | ||||
| 2 1/2" | AB832-212 | ||||
| 2 3/4" | AB832-234 | ||||
| 3" | AB832-3 | ||||
| 3 1/4" | AB832-314 | ||||
| 3 1/2" | AB832-312 | ||||
| 3 3/4" | AB832-334 | ||||
| 4" | AB832-4 | ||||
 | |||||
| #8-32 FLAT HEAD FEMALE NUT/ BLIND THREAD/ ALUMINUM | |||||
| A | H | D | F | L | PART NUMBER |
| 0.394" | 0.055" | 0.197" | 8-32 THREAD | 1/8" | AI8321-18 |
| 3/16" | AI832-316 | ||||
| 1/4" | AI832-14 | ||||
| 3/8" | AI832-38 | ||||
| 1/2" | AI832-12 | ||||
 | ||||||
| #8-32 EXTENDED SCREW/ALUMINUM | ||||||
| D | D1 | L | L1 | F | G | PART NUMBER |
| 0.197" | 8-32 THREAD | 1/4" | 0.2" | 8-32 THREAD | 0.433" | AE8321-14 |
| 1/2" | AE832-12 | |||||
| 3/4" | AI832-34 | |||||
| 1" | AE832-1 | |||||
 | |||
| #8-32 MALE SCREW/ALUMINUM | |||
| D | D1 | L | PART NUMBER |
| 0.413" | 8-32 THREAD | 3/16" | AM832-316 |
| 5/16" | AM832-516 | ||
MATERIAL AVAILABLE FOR BINDING POST SCREW: ALUMINUM
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
