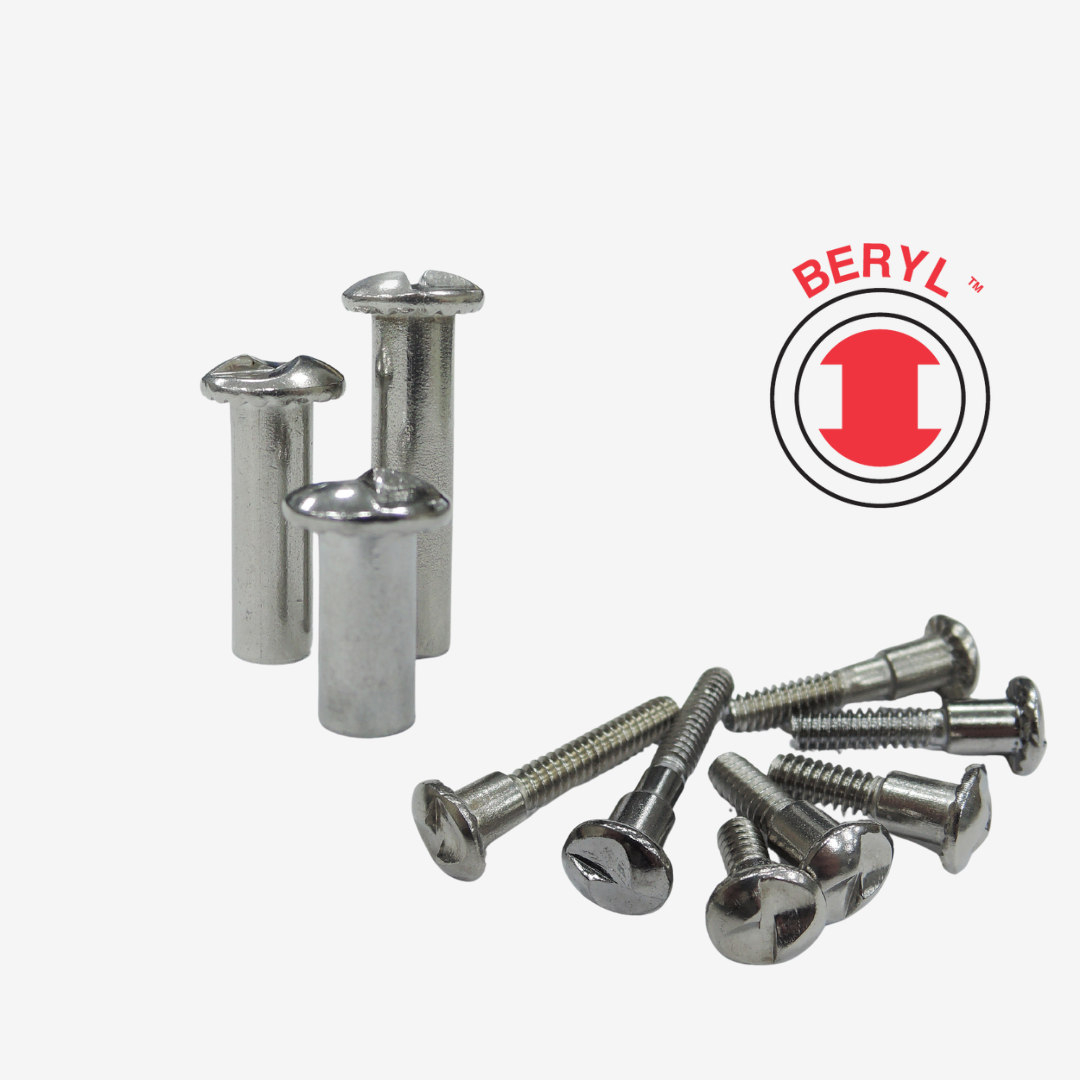

Binding Post also call Chicago screws, Chicago screw posts, bookbinding screws are great for binding your documents. Using one or two holes can replace binders and save precious space when archiving your documents. Place a chicago screw in the corner of your marketing material for a smart, economical and elegant finish. TOP SCREW supply Brass, Steel, Alimunium, and Stainless steel screw .
TRUSS COMBO HEAD POST SCREW
| 8#-32 COMBO HEAD FEMALE POST / BLIND THREAD / STEEL |
| A | H | D | F | L | PART NO. |
| 0.3750 | 0.0940 | 0.2030 | 8#-32 THREAD | 3/8" | SB832-38 |
| 1/2" | SB832-12 |
| 5/8" | SB832-58 |
| 3/4" | SB832-34 |
| 1" | SB832-12 |
| 1.32" | SB832-132 |
| 10#-24 SLOTTED HEAD HOLLOW POST / TAPPED THROUGH / STEEL |
| A | H | D | F | L | PART NO. |
| 0.4300 | 0.1050 | 0.2440 | 10#-24 THREAD | 1/4" | SB1024-14 |
| 3/8" | SB1024-38 |
| 1/2" | SB1024-12 |
| 5/8" | SB1024-58 |
| 3/4" | SB1024-34 |
| 1" | SB1024-1 |
| 1-1/4" | SB1024-114 |
| 1/1-2" | SB1024-112 |
| 2" | SB1024-2 |
|
| 1/4#-20 SLOTTED HEAD HOLLOW POST / TAPPED THROUGH / STEEL |
| A | H | D | F | L | PART NO. |
| 0.5630 | 0.1560 | 0.3130 | 1/4-20 THREAD | 3/8" | SB1420-38 |
| 1/2" | SB1420-12 |
| 3/4" | SB1420-34 |
| 1" | SB1420-1 |
| 1/4" | SB1420-14 |
| 1-1/2" | SB1420-112 |
| 1-3/4" | SB1420-134 |
| 2" | SB1420-2 |
| 5/6#-18 SLOTTED HEAD HOLLOW POST / TAPPED THROUGH / STEEL |
| A | H | D | F | L | PART NO. |
| 0.6875 | 0.1720 | 0.3750 | 5/16-18 THREAD | 3/8" | SB51618-38 |
| 1/2" | SB51618-12 |
| 5/8" | SB51618-58 |
| 3/4" | SB51618-34 |
| 7/8" | SB51618-78 |
| 1" | SB51618-1 |
| 1-1/4" | SB51618-114 |
| 1-1/2" | SB51618-112 |
| 8#-32 SLOTTED HEAD HOLLOW POST / TAPPED THROUGH / STEEL |
| A | H | D | F | L | PART NO. |
| 0.3750 | 0.0940 | 0.2030 | 8#-32 THREAD | 1/4" | ST832-14 |
| 5/16" | ST832-516 |
| 10#-24 SLOTTED HEAD HOLLOW POST / TAPPED THROUGH / STEEL |
| A | H | D | F | L | PART NO. |
| 0.4300 | 0.1050 | 0.2440 | 10#-24 THREAD | 1/4" | ST1024-14 |
| 1/4#-20 SLOTTED HEAD HOLLOW POST / TAPPED THROUGH / STEEL |
| A | H | D | F | L | PART NO. |
| 0.5625 | 0.1563 | 0.3130 | 1/4-20 THREAD | 1/4" | ST1420-14 |
| 5/16#-18 SLOTTED HEAD HOLLOW POST / TAPPED THROUGH / STEEL |
| A | H | D | F | L | PART NO. |
| 0.6875 | 0.1720 | 0.3750 | 5/16-18 THREAD | 3/8" | ST51618-38 |
|
| 8#-32 SCREW TRUSS SLOTTED HEAD / STEEL |
| A | H | D1 | L | PART NO. |
| 0.3750 | 0.0940 | 8#-32 THREAD | 5/16" | SS832-516 |
| 10#-24 SCREW TRUSS SLOTTED HEAD / STEEL |
| A | H | D1 | L | PART NO. |
0.4300
| 0.1050 | 10#-24 THREAD | 5/16" | SS1024-516 |
| 1/4#-20 SCREW TRUSS SLOTTED HEAD / STEEL |
| A | H | D1 | L | PART NO. |
0.5625
| 0.1563 | 1/4-20 THREAD | 5/16" | SS1420-516 |
| 5/16#-18 SCREW TRUSS SLOTTED HEAD / STEEL |
| A | H | D1 | L | PART NO. |
| 0.6875 | 0.1720 | 5/16-18 THREAD | 3/8" | SS51618-38 |
| 1/2" | SS51618-12 |
|
MATERIAL AVAILABLE FOR TRUSS COMBO HEAD POST SCREW:
STEEL, STAINLESS STEEL , ALUMINUM, BRASS
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
