STAINLESS STEEL(INOX)/STEEL BLIND RIVET

STAINLESS STEEL/ STEEL BLIND RIVETS
TS.SSAS. SERIES

ADVANTAGES OF STAINLESS STEEL/STEEL BLIND RIVET:

 STAINLESS STEEL/STEEL BLIND RIVETS PROVIDE STRONG HOLDING FOR APPLICATION.

 STAINLESS STEEL/STEEL BLIND RIVETS ARE LOW IN COST COMPARE WITH BOLT AND NUT.

 STAINLESS STEEL/STEEL BLIND RIVETS ARE IDEAL FOR WIDE RANGE APPLICATION.

 STAINLESS STEEL/STEEL BLIND RIVETS ARE AVAILABLE IN DOME, COUNTERSUNK OR LARGE FLANGE STYLE.

 STAINLESS STEEL/STEEL BLIND RIVETS ARE FAST AND EASY TO INSTALL.

 STAINLESS STEEL/STEEL BLIND RIVETS PROVIDE HIGH TENSILE AND SHEAR STRENGTH COMPARE WITH  ALUMINUM  OR STEEL.

 STAINLESS STEEL/STEEL BLIND RIVETS ARE IDEAL FOR RUST RESISTANCE APPLICATION.

 ★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

MATERIAL AVAILABLE FOR STAINLESS STEEL/ STEEL BLIND RIVETS TS.SSAS. SERIES:
RIVET:   STAINLESS STEEL 302/316 (INOX A2/A4/18-8/18-10)
SHAFT:  STEEL 1018 ~ 1022

FINISH SURFACE AVAILABLE:
RIVET:  SELF COULOURED
SHAFT:  CR3 WHITE ZINC PLATED/ CR3 YELLOW ZINC PLATED

TS.SSAS.	ITEM SIZE
STAINLESS STEEL RIVET STEEL SHAFT	A(HEAD DIA.)	B(BODY DIA.)	(INCH)	C(LENGTH)	(INCH)
TS.SSAS 4-2	6.4mm	3.2mm	1/8	4.80mm	.19
TS.SSAS 4-3				6.40mm	.25
TS.SSAS 4-4				8.00mm	.315
TS.SSAS 4-5				11.00mm	.43
TS.SSAS 4-6				12.30mm	.48
TS.SSAS 5-2	8.0mm	4.0mm	5/32	5.80mm	.23
TS.SSAS 5-3				7.00mm	.275
TS.SSAS 5-4				8.50mm	.335
TS.SSAS 5-5				10.00mm	.394
TS.SSAS 5-6				11.40mm	.488
TS.SSAS 5-8				13.00mm	.511
TS.SSAS 6-2	9.0mm	4.8mm	3/16	6.40mm	.25
TS.SSAS 6-4				10.50mm	.41
TS.SSAS 6-6				13.50mm	.53
TS.SSAS 6-8				16.50mm	.6

　

　

　

　

　

　

　

　

　

　

　

　

STEEL/ STEEL BLIND RIVETS TS.SAS. SERIES

STEEL/ STEEL BLIND RIVETS TS.SAS. SERIES

ADVANTAGES OF STEEL/STEEL BLIND RIVET:

STEEL/STEEL BLIND RIVETS PROVIDE STRONG HOLDING FOR APPLICATION.

STEEL/STEEL BLIND RIVETS ARE LOW IN COST COMPARE WITH BOLT AND NUT.

STEEL/STEEL BLIND RIVETS ARE IDEAL FOR WIDE RANGE APPLICATION.

STEEL/STEEL BLIND RIVETS ARE AVAILABLE IN DOME, COUNTERSUNK OR LARGE FLANGE STYLE.

STEEL/STEEL BLIND RIVETS ARE FAST AND EASY TO INSTALL.

STEEL/STEEL BLIND RIVETS PROVIDE HIGH TENSILE AND SHEAR STRENGTH COMPARE WITH ALUMINUM.

STEEL/STEEL BLIND RIVETS ARE IDEAL FOR RUST RESISTANCE APPLICATION.

MATERIAL AVAILABLE FOR STEEL/ STEEL BLIND RIVETS TS.SAS. SERIES:
RIVET:   STEEL 1006
SHAFT: STEEL 1018 ~ 1022

FINISH SURFACE AVAILABLE:
PLATING: CR3 WHITE ZINC PLATED/ CR3 YELLOW ZINC PLATED/ CR3 BLACK ZINC PLATED/ CR3 ZINC NICKEL PLATED ... ETC.
COLOURED: YELLOW/ RED/ BLACK/ WHITE ... ETC.　

★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



TS.SAS.	ITEM SIZE
STEEL RIVET STEEL SHAFT	A(HEAD DIA.)	B(BODY DIA.)	(INCH)	C(LENGTH)	(INCH)
TS.SAS 3-2	4.5mm	2.4mm	3/32	5.80mm	.23
TS.SAS 3-3				7.40mm	.30
TS.SAS 3-4				8.40mm	.33
TS.SAS 4-1	6.4mm	3.2mm	1/8	4.80mm	.19
TS.SAS 4-2				6.40mm	.25
TS.SAS 4-3				8.00mm	.315
TS.SAS 4-4				9.60mm	.38
TS.SAS 4-5				11.50mm	.45
TS.SAS 4-6				12.70mm	.50
TS.SAS 4-8				16.10mm	.63
TS.SAS 5-1	8.0mm	4.0mm	5/32	5.80mm	.23
TS.SAS 5-2				7.00mm	.275
TS.SAS 5-3				8.50mm	.335
TS.SAS 5-4				10.00mm	.394
TS.SAS 5-5				11.40mm	.488
TS.S AS 5-6				13.00mm	.511
TS.SAS  5-8				16.50mm	.65
TS.SAS 5-10				19.50mm	.77
TS.SAS 6-1	9.0mm	4.8mm	3/16	6.40mm	.25
TS.SAS 6-2				7.40mm	.30
TS.SAS 6-3				9.60mm	.38
TS.SAS 6-4				11.00mm	.44
TS.SAS 6-5				12.70mm	.50
TS.SAS 6-6				14.50mm	.57
TS.SAS 6-8				17.50mm	.69
TS.SAS 6-10				20.40mm	.80
TS.SAS 6-12				24.00mm	.95

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

　

BLIND RIVET SERIES:ALUMINUM/STEEL BLIND RIVETS

ALUMINUM/ STEEL BLIND RIVETS TS.AAS. SERIES

ADVANTAGES OF ALUMINUM/STEEL BLIND RIVET:

•  ALUMINUM/STEEL BLIND RIVETS PROVIDE STRONG HOLDING FOR APPLICATION.
• ALUMINUM/STEEL BLIND RIVETS ARE LOW IN COST COMPARE WITH BOLT AND NUT.
• ALUMINUM/STEEL BLIND RIVETS ARE IDEAL FOR WIDE RANGE APPLICATION.
• ALUMINUM/STEEL BLIND RIVETS ARE AVAILABLE IN DOME, COUNTERSUNK OR LARGE FLANGE STYLE.
• ALUMINUM/STEEL BLIND RIVETS ARE FAST AND EASY TO INSTALL.
• ALUMINUM/STEEL BLIND RIVETS ARE IDEAL FOR RUST RESISTANCE APPLICATION.
• ALUMINUM/STEEL BLIND RIVETS ARE IDEAL FOR LIGHT WEIGHT USAGE.
•

• ★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

 MATERIAL AVAILABLE FOR ALUMINUM/ STEEL BLIND RIVETS TS.AAS. SERIES:

RIVET:   ALUMINUM 5050
SHAFT: STEEL 1018 ~ 1022

FINISH SURFACE AVAILABLE:
RIVET:   SELF COULOUR/ COLOURED IN YELLOW/ BLACK/ WHITE/ RED...ETC
SHAFT:  CR3 WHITE ZINC PLATED/ CR3 YELLOW ZINC PLATED

　



TS.AAS.	ITEM SIZE
ALUMINUM RIVET STEEL SHAFT	A(HEAD DIA.)	B(BODY DIA.)	(INCH)	C(LENGTH)	(INCH)
TS.AAS 3-2	4.5mm	2.4mm	3/32	5.80mm	.23
TS.AAS 3-3				7.40mm	.30
TS.AAS 3-4				8.40mm	.33
TS.AAS 4-1	6.4mm	3.2mm	1/8	4.80mm	.19
TS.AAS 4-2				6.40mm	.25
TS.AAS 4-3				8.00mm	.315
TS.AAS 4-4				9.60mm	.38
TS.AAS 4-5				11.50mm	.45
TS.AAS 4-6				12.70mm	.50
TS.AAS 4-8				16.10mm	.63
TS.AAS 5-1	8.0mm	4.0mm	5/3	5.80mm	.23
TS.AAS 5-2				7.00mm	.275
TS.AAS 5-3				8.50mm	.335
TS.AAS 5-4				10.00mm	.394
TS.AAS 5-5				11.40mm	.488
TS.AAS 5-6				13.00mm	.511
TS.AAS 5-8				16.50mm	.65
TS.AAS 5-10				19.50mm	.77
TS.AAS 6-1	9.0mm	4.8mm	3/16	6.40mm	.25
TS.AAS 6-2				7.40mm	.30
TS.AAS 6-3				9.60mm	.38
TS.AAS 6-4				11.00mm	.44
TS.AAS 6-5				12.70mm	.50
TS.AAS 6-6				14.50mm	.57
TS.AAS 6-8				17.50mm	.69
TS.AAS 6-10				20.40mm	.80
TS.AAS 6-12				24.00mm	.95

　
　
　
　
　
　
　
　
　
　
　
　
　
　
　
　
　
　
　
　
　

　

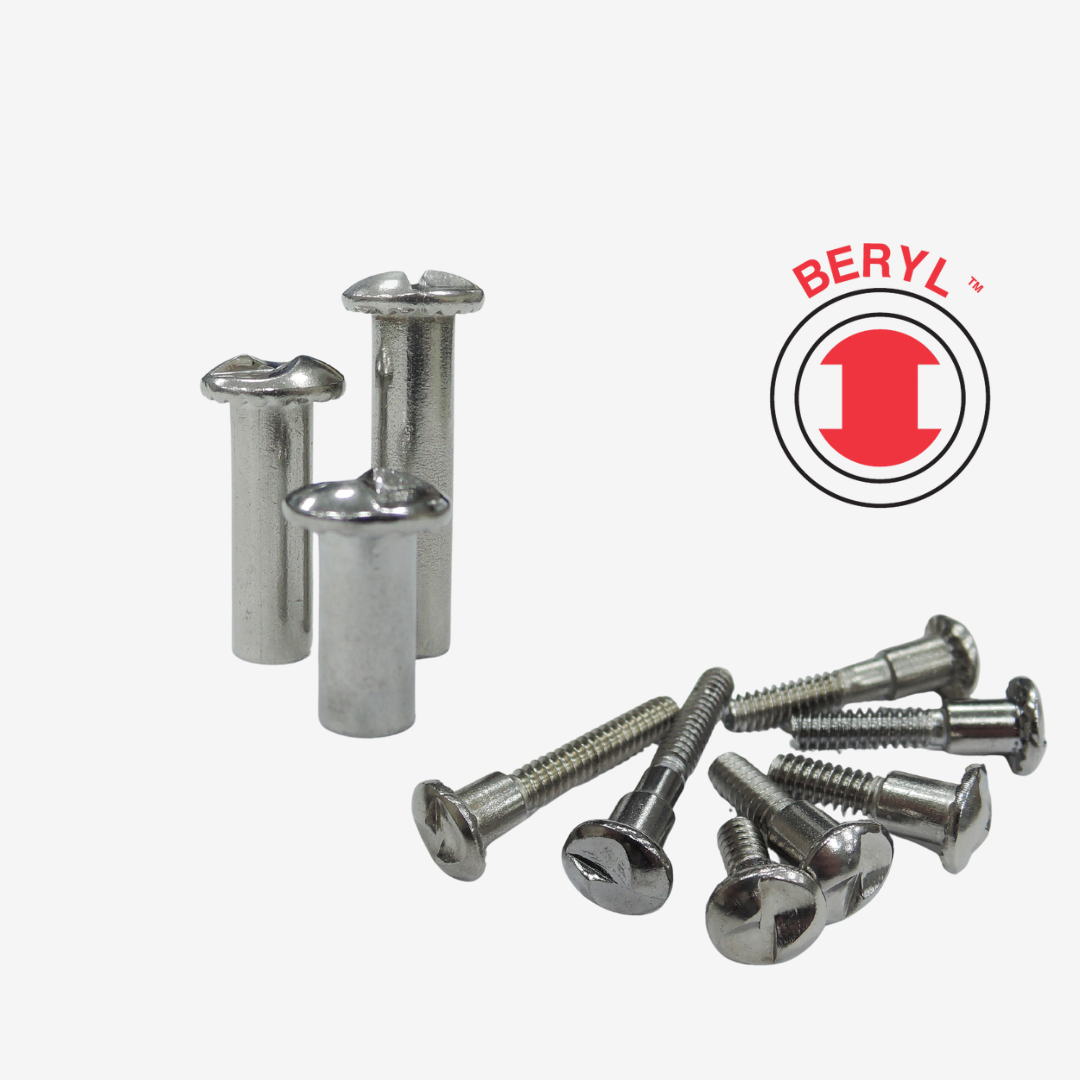

Binding Post also call Chicago screws, Chicago screw posts, bookbinding screws are great for binding your documents. Using one or two holes can replace binders and save precious space when archiving your documents. Place a chicago screw in the corner of your marketing material for a smart, economical and elegant finish.  TOP SCREW supply Brass, Steel, Alimunium, and Stainless steel screw .

BINDING POST SCREW/ BRASS SPECIFICATION

8-32 TRUSS HEAD POST/ BLIND THREAD/ BRASS
A	H	D	F	L	PART NO
0.413"	0.080"	0.197"	8-32 THREAD	1/4"	BB832-14
				3/8"	BB832-38
				1/2"	BB832-12
				3/4"	BB832-34
				1"	BB832-1

　

8-32 FLAT HEAD HOLLOW POST/ TAPPED THROUGH/ BRASS
A	H	D	F	L	PART NO
0.405"	0.055"	0.201"	8-32 THREAD	3/16"	BT832-316
				1/4"	BT832-14

　

8-32 MALE SCREW/ SLOTTED HEAD/ BRASS
A	H	D1	L	PART NO
0.413"	0.080"	8-32 THREAD	3/16"	BS832-316
			1/4"	BS832-14

MATERIAL AVAILABLE FOR BINDING POST SCREW/ BRASS SPECIFICATION:
STEEL, BRASS

★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
