SELF TAPPING THREADED INSERT W. THREE CUTTING HOLE-THICK WALL SECTION


SELF TAPPING THREADED INSERT W. THREE CUTTING HOLE-THICK WALL SECTION

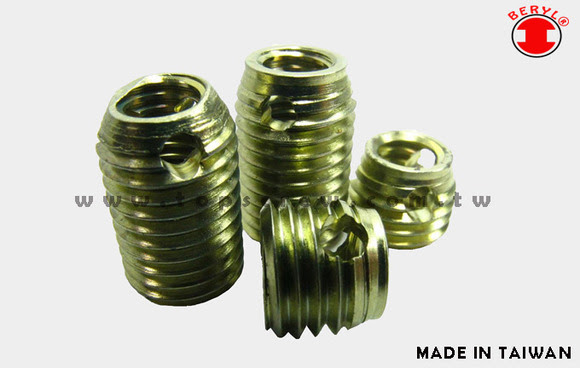

SELF TAPPING THREADED INSERT is strong and reusable permanent thread ,and need to tap a hole to install these inserts. Taps and installs in one easy step, can saving time,money and labor. Self tapping threaded is a very high pull out strength and  can be endure vibration without loosening. Three lateral cutting bores make for an easy self-tapping installation, and provide a connection for highly resistant to vibration.

SELF TAPPING THREADED INSERT allows permanent threads to be produced in a wide range of components and materials.
MATERIAL AVAILABLE FOR SELF TAPPING THREADED INSERT W. THREE CUTTING HOLE:  Aluminum, Aluminum Alloy, Steel, Stainless Steel, Brass
ADVANTAGE OF SELF TAPPING THREADED INSERT:
  • HIGH PULL-OUT STRENGTH
  • HIGH TORQUE RESISTANCE
  • STRONG WEAR RESISTANCE THREAD
  • FAST, EASY INSTALLATION
  • EXTREME VIBRATION RESISTANCE

INCH SIZE
INCH P/N
METRIC SIZE
METRIC P/N
EXTERNAL THREAD
LENGTH
PIN DIA.
HOLE SIZE
INTERNAL THREAD(d1)
d2(mm)
P (mm)
L
+0.003"
-0.000"

4-40TSB30440
M3
TSB30030
5.00
0.60
0.157"
0.181"
0.236"
4-40TSB30440L
M3
TSB30030L
5.00
0.60
0.236"
0.181"
0.315"
6-32TSB30632
M3.5
TSB30035
6.00
0.80
0.197"
0.216"
0.276"
6-32TSB30632L
M3.5
TSB30035L
6.00
0.80
0.315"
0.216"
0.394"
8-32TSB30832
M4
TSB30470
6.50
0.80
0.236"
0.236"
0.315"
8-32TSB30832L
M4
TSB30470L
6.50
0.80
0.315"
0.236"
0.394"
10-32TSB301032
M5
TSB30580
8.00
1.00
0.276"
0.291"
0.354"
10-32TSB301032L
M5
TSB30580L
8.00
1.00
0.394"
0.291"
0.512"
1/4-20TSB30420
M6
TSB30610
10.00
1.25
0.315"
0.366"
0.394"
1/4-20TSB30420L
M6
TSB30610L
10.00
1.25
0.472"
0.366"
0.591"
5/16-18TSB30518
M8
TSB308125
12.00
1.50
0.354"
0.437"
0.433"
5/16-18TSB30518L
M8
TSB308125L
12.00
1.50
0.551"
0.437"
0.669"
3/8-16TSB30616
M10
TSB301015
14.00
1.50
0.394"
0.516"
0.512"
3/8-16TSB30616L
M10
TSB301015L
14.00
1.50
0.709"
0.516"
0.866"
7/16-14TSB3071614
M12
TSB301275
16.00
1.75
0.472"
0.590"
0.590"
7/16-14TSB3071614L
M12
TSB301275L
16.00
1.75
0.866"
0.590"
1.024"
1/2-13TSB301213
M14
TSB301420
18.00
2.00
0.551"
0.669"
0.669"
1/2-13TSB301213L
M14
TSB301420L
18.00
2.00
0.945"
0.669"
1.102"
5/8-11TSB305811
M16
TSB301620
20.00
2.00
0.551"
0.748"
0.669"
5/8-11TSB305811L
M16
TSB301620L
20.00
2.00
0.945"
0.748"
1.102"
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
Posted by at No comments:
Labels: , , , , , , , , , , , , , , , ,

Mar 28, 2012

SELF TAPPING THREADED INSERT W. THREE CUTTING HOLE-THIN WALL SECTION


SELF TAPPING THREADED INSERT is strong and reusable permanent thread ,and need to tap a hole to install these inserts. Taps and installs in one easy step, can saving time,money and labor. Self tapping threaded is a very high pull out strength and  can be endure vibration without loosening. Three lateral cutting bores make for an easy self-tapping installation, and provide a connection for highly resistant to vibration.
SELF TAPPING THREADED INSERT allows permanent threads to be produced in a wide range of components and materials.
MATERIAL AVAILABLE FOR SELF TAPPING THREADED INSERT W. THREE CUTTING HOLE:  Aluminum, Aluminum Alloy, Steel, Stainless Steel, Brass
ADVANTAGE OF SELF TAPPING THREADED INSERT:
  • HIGH PULL-OUT STRENGTH
  • HIGH TORQUE RESISTANCE
  • STRONG WEAR RESISTANCE THREAD
  • FAST, EASY INSTALLATION
  • EXTREME VIBRATION RESISTANCE
THIN WALL SECTION　
INCH SIZEINCH P/N.METRIC SIZEMETRIC P/N.EXTERNAL THREADLENGTHHOLE SIZEHOLE DEPTH
INTERNAL THREAD(d1)d2(mm)P(mm)L+0.003"
-0.000"		　
4-40TS30440M3TSB300304.500.500.157"0.157"0.236"
4-40TS30440LM3TSB30030L4.500.500.236"0.157"0.315"
6-32TS30632M3.5TSB300355.000.600.197"0.177"0.276"
6-32TS30632LM3.5TSB30035L5.000.600.315"0.177"0.394"
8-32TS30832M4TSB304706.000.700.236"0.216"0.315"
8-32TS30832LM4TSB30470L6.000.700.315"0.216"0.394"
10-32TS301032M5TSB305806.500.800.276"0.236"0.354"
10-32TS301032LM5TSB30580L6.500.800.394"0.236"0.512"
1/4-20TS30420M6TSB306108.001.000.315"0.291"0.394"
1/4-20TS30420LM6TSB30610L8.001.000.472"0.291"0.591"
5/16-18TS30518M8TSB30812510.001.250.354"0.366"0.433"
5/16-18TS30518LM8TSB308125L10.001.250.551"0.366"0.669"
3/8-16TS30616M10TSB30101512.001.500.394"0.437"0.512"
3/8-16TS30616LM10TSB301015L12.001.500.709"0.437"0.866"
7/16-14TS3071614M12TSB30127514.001.750.472"0.516"0.590"
7/16-14TS3071614LM12TSB301275L14.001.750.866"0.516"1.024"
1/2-13TS301213M14TSB30142016.002.000.551"0.590"0.669"
1/2-13TS301213LM14TSB301420L16.002.000.945"0.590"1.102"
5/8-11TS305811M16TSB30162018.002.000.551"0.669"0.669"
5/8-11TS305811LM16TSB301620L18.002.000.945"0.669"1.102"
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
Posted by at No comments:

Mar 27, 2012

SELF TAPPING THREADED INSERT W. GROOVED PIN

SELF TAPPING THREADED INSERT
W. GROOVED PIN

MATERIAL AVAILABLE FOR SELF TAPPING THREADED INSERT W. GROOVED PIN:
ALUMINUM/ALUMINUM ALLOY/STEEL/STAINLESS STEEL/BRASS
FOR USE IN THIN WALL OR CLOSE TO AN EDGE
ADVANTAGE OF SELF TAPPING THREADED INSERT:

  • HIGH PULL-OUT STRENGTH


  • HIGH TORQUE RESISTANCE


  • STRONG WEAR RESISTANCE THREAD


  • FAST, EASY INSTALLATION


  • EXTREME VIBRATION RESISTANCE


    • ★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

    INCH SIZEINCH P/N.METRIC SIZEMETRIC P/N.EXTERNAL THREADLENGTHPIN LENGTHPIN DIA.HOLE SIZE
    INTERNAL THREAD(d1)d2(mm)P(mm)LI2ID3+0.003"
    -0.000"
    8-32TSBP30832M4TSBP304706.500.800.236"0.1570.0790.236"
    8-32TSBP30832LM4TSBP30470L6.500.800.315"0.2360.0790.236"
    10-32**TSBP301032M5TSBP305808.001.000.276"0.1570.0790.291"
    10-32**TSBP301032LM5TSBP30580L8.001.000.394"0.2360.0790.291"
    1/4-20**TSBP30420M6TSBP3061010.001.250.315"0.2360.0790.366"
    1/4-20**TSBP30420LM6TSBP30610L10.001.250.472"0.3940.0790.366"
    5/16-18TSBP30518M8TSBP3051812.001.500.354"0.2360.0790.437"
    5/16-18TSBP30518LM8TSBP30518L12.001.500.551"0.3940.0790.437"
    3/8-16TSBP30616M10TSBP30101514.001.500.394"0.2360.0790.516"
    3/8-16TSBP30616LM10TSBP301015L14.001.500.709"0.6300.0790.516"
    7/16-14TSBP3071614M12TSBP30127516.001.750.472"0.3940.0790.590"
    7/16-14TSBP3071614LM12TSBP301275L16.001.750.866"0.6300.0790.590"
    1/2-13TSBP301213M14TSBP30142018.002.000.551"0.3940.0790.669"
    1/2-13TSBP301213LM14TSBP301420L18.002.000.945"0.6300.0790.669"
    5/8-11TSBP305811M16TSBP30161520.002.000.551"0.3940.0790.748"
    5/8-11TSBP305811LM16TSBP301615L20.002.000.945"0.6300.0790.748"



    Posted by at No comments:

    Mar 26, 2012

    SELF TAPPING THREAD INSERTS-SLOTTED SERIES

     SELF TAPPING THREAD INSERTS-SLOTTED SERIES
    MATERIAL AVAILABLE FOR SELF TAPPING THREAD INSERTS-SLOTTED SERIES:
    STEEL, STAINLESS STEEL 303(A1), STAINLESS STEEL 316(A4/18-10), BRASS C3604
    FINISH FOR STEEL PARTS OF SELF TAPPING TGHREADED INSERT:
    CR3 WHITE/YELLOW ZINC PLATED
    CHARACTERISTICS OF SELF TAPPING THREADED INSERTS:
    • SELF TAPPING THREADED INSERTS ARE EASY TO INSTALLED,
    • SELF TAPPING THREADED INSERTS ARE DESIGNED TO REPLACE SPRING COIL.
    • SELF TAPPING THREADED INSERTS PROVIDE STRONG THREADS FOR WEAK MATERIAL LIKE ALUMINUM OR PLASTIC.
    • SELF TAPPING THREADED INSERTS ARE ABLE TO INSTALL FOR VIBRATING ENVIRONMENT.
    APPICATIONS OF SELF TAPPING THREADED INSERTS:
    • SELF TAPPING THREADED INSERTS CAN BE APPLIED TO DIFFERENT MATERIAL SUCH AS PLASTIC, ALUMINUM, CAST IRON.
    • SELF TAPPING THREADED INSERTS ARE DESIGNED TO APPLY IN WEAK MATERIAL WHERE THREADS ARE FREQUENTLY USED.
    ★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
    Posted by at No comments:

    Mar 25, 2012

    BOLT RIVET NUT


    BOLT RIVET NUT
    MATERIALS ARE AVAILABLE FOR BOLT RIVET NUT:
    STAINLESS STEEL 302/304 (A2/18-8), 316(A4/18-10), STEEL, ALUMINUM 5056/6061, BRASS C2600
    CHARACTERISTCS OF BOLT (SCREW) RIVET NUT:
    • BOLT (SCREW) RIVET NUT IS EASY AND FAST IN INSTALLATION WITH HANDY TOOL.
    • BOLT (SCREW) RIVET NUT PROVIDES HIGH TORQUE AND STRONG THREADS IN COMPARING WITH NORMAL FASTENERS.
    • WELDING PROCESS IN NOT REQUIRED IN INSTALLING BOLT (SCREW) RIVET NUT.
    • BOLT (SCREW) RIVET NUT IS ABLE TO REDUCE ASSEMBLING TIME AND IMPROVE OUTPUT.
    • BOLT (SCREW) RIVET NUT IS ABLE TO PROVIDE A STRONG BINDING SUPPORT ON COMBINATION APPLICATIONS.
    • BOLT (SCREW) RIVET NUT WILL NOT LOOSEN FROM VIBRATING OBJECTS ONCE ITS' INSTALLED.
    • BOLT (SCREW) IS ALREADY COMBINED WITH BLIND RIVET NUT BEFORE INSTALLATION, SO IT IS NOT NECESSARY TO INSTALL THE SCREW ON THE BLIND RIVET NUT.
    • BOLT (SCREW) AND BLIND RIVET NUT IS COMBINED RIGIDLY TO SUIT VIBRATING ENVIRONMENT.
    • BOLT (SCREW) RIVET NUTS ARE AVAILABLE IN BOTH UNC AND ISO DIMENSION.
    ★OTHER SIZES AVAILABLE:
    TOP SCREW IS ABLE TO MANUFACTURE OTHER SIZES OF BOLT (SCREW) RIVET NUT APART FROM THE SIZES SHOWN IN TABLE BELOW. TOP SCREW IS ABLE TO MANUFACTURE BOLT (SCREW) RIVET NUT BASED ON THE STANDARD CYLINDRICAL, FULL HEXAGONAL AND HALF HEXAGONAL BLIND RIVET NUT IN TOP SCREW'S CATALOG. TOP SCREW IS ALSO CAPABLE FOR CUSTOMIZED SCREW (BOLT) RIVET NUT TO FULFILL YOUR REQUIREMENT FROM DESIGNING, RECOMMENDING AND OF COURSE MANUFACTURING.
    NOTE 1: GRIP RANGE CAN BE AFFECTED BY PARENT MATERIAL DENSITY AND ACTUAL HOLE SIZE. WE SUGGEST TRIAL INSTALLATIONS TO DETERMINE OPTIMUM GRIP.
    NOTE 2: ADDITIONAL UNF FINE THREADS, GRIP LENGTHS AND MATERIALS ARE AVAILABLE. PLEASE CONTACT TOP SCREW METAL CORP. FOR MORE DETAIL.
    THREAD SPECIFICATION: Unified - 2A/21 per ASME B1.1
                                                  Metric ­– 6g/21 per ASME 1.21M



    Posted by at No comments:
