SLOTTED TRUSS HEAD SEX BOLTS

SLOTTED TRUSS HEAD SEX BOLTS

MATERIAL AVALIABLE:
  STEEL, STAINLESS STEEL
★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



TRUSS COMBO HEAD POST SCREW

TRUSS COMBO HEAD POST SCREW
CHICAGO SCREW

MATERIAL AVALIABLE:
STEEL, STAINLESS STEEL, ALUMINUM, BRASS
★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

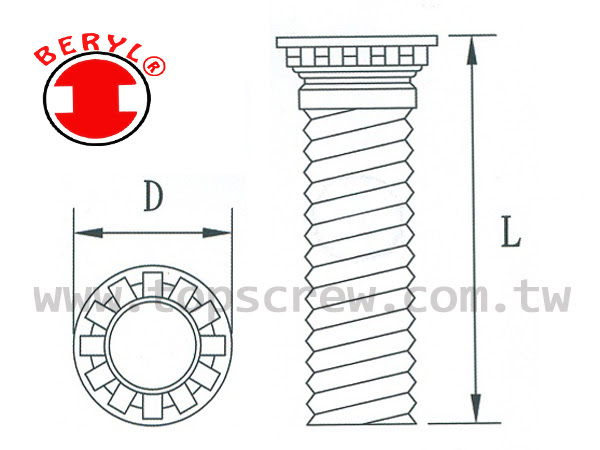

TSC 6 SELF-CLINCHING STUDS

TSC 6 SELF-CLINCHING STUDS

MATERIAL AVAILABLE FOR SELF-CLINCHING STUDS:
STEEL, STAINLESS STEEL

ADVANTAGES OF CLINCHING PARTS:
1.MAY BE INSTALLED USING ANY PARALLEL ACTING SQUEEZING FORCE.
2.PROVIDE HIGH PUSHOUT AND TORQUE-OUT RESISTANCE.
3.DO NOT REQUIRE SPECIAL HOLE PREPARATION, SUCH AS CHAMFERING AND DEBURRING.
4.REVERSE SIDE OF METAL SHEET REMAINS FLUSH.
5.NO RETAPPING NECESSARY AFTER APPLICATION.
6.LOW INSTALLED COSTS.

★ STUDS：
EXTERNALLY THREADED FASTENERS WHICH ARE USED WHERE THE ATTACHMENT MUST BE POSITIONED BEFORE BEING FASTENED.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



TSC 5 SELF-CLINCHING STANDOFFS

TSC 5 SELF-CLINCHING LOCK NUTS

ADVANTAGES OF CLINCHING PARTS:
1.MAY BE INSTALLED USING ANY PARALLEL ACTING SQUEEZING FORCE.
2.PROVIDE HIGH PUSHOUT AND TORQUE-OUT RESISTANCE.
3.DO NOT REQUIRE SPECIAL HOLE PREPARATION, SUCH AS CHAMFERING AND DEBURRING.
4.REVERSE SIDE OF METAL SHEET REMAINS FLUSH.
5.NO RETAPPING NECESSARY AFTER APPLICATION.
6.LOW INSTALLED COSTS.

★ NUTS： NUTS WITH THREAD STRENGTHS GREATER THAN MILD STEEL SCREWS ARE COMMONLY USED WHEREVER STRONG INTERNAL
THREADS ARE NEEDED FOR COMPONENT ATTACHMENT OF FABRICATION ASSEMBLY.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



TSC 4 SELF-CLINCHING STANDOFFS

TSC 4 SELF-CLINCHING NUTS

ADVANTAGES OF CLINCHING PARTS:
1.MAY BE INSTALLED USING ANY PARALLEL ACTING SQUEEZING FORCE.
2.PROVIDE HIGH PUSHOUT AND TORQUE-OUT RESISTANCE.
3.DO NOT REQUIRE SPECIAL HOLE PREPARATION, SUCH AS CHAMFERING AND DEBURRING.
4.REVERSE SIDE OF METAL SHEET REMAINS FLUSH.
5.NO RETAPPING NECESSARY AFTER APPLICATION.
6.LOW INSTALLED COSTS.

★ NUTS： NUTS WITH THREAD STRENGTHS GREATER THAN MILD STEEL SCREWS ARE COMMONLY USED WHEREVER STRONG INTERNAL
THREADS ARE NEEDED FOR COMPONENT ATTACHMENT OF FABRICATION ASSEMBLY.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



TSC 1 SELF-CLINCHING STANDOFFS

ADVANTAGES OF CLINCHING PARTS:
1.MAY BE INSTALLED USING ANY PARALLEL ACTING SQUEEZING FORCE.
2.PROVIDE HIGH PUSHOUT AND TORQUE-OUT RESISTANCE.
3.DO NOT REQUIRE SPECIAL HOLE PREPARATION, SUCH AS CHAMFERING AND DEBURRING.
4.REVERSE SIDE OF METAL SHEET REMAINS FLUSH.
5.NO RETAPPING NECESSARY AFTER APPLICATION.
6.LOW INSTALLED COSTS.

★ STANDOFFS：
USED WHERE IT IS NECESSARY TO STACK OR SPACE COMPONENTS AWAY FROM THE PANEL.
THRU-THREADED OR BLIND TYPES ARE GENERALLY STANDARD.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



WELDING STUD

WELDING STUD

MATERIAL AVAILABLE:
STEEL WITH COPPER PLATED, STAINLESS STEEL, BRASS

★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



WELDING STUD NUT

WELDING STUD NUT
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



Vented Screw

Vented screw

vented screws provide a path for trapped air to be pumped away from the bottoms, sides, and shoulders of blind-tapped holes.

SIX LOBE WITH PIN SEX BOLT

梅花帶PIN公母套

SIX LOBE WITH PIN SEX BOLT

MATERIAL AVALIABLE:
STEEL, STAINLESS STEEL, ALUMINUM, BRASS

ADOPT SPECIAL HEAD TYPE AND PUNCH ON THE DESIGN IN SCREW, HAVE SAFE, GUARD TAKE APART AND THEFT, OFFER FUNCTION PROTECTED TO DESTROY TO DEFENDING. GENERAL WRENCH SET IS ALL UNABLE TO DESMANTLE SUCH AS CROSS, STRAIGHT-LINE HEX KEY, TORX KEY ETC.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

FEMALE NUT

MALE SCREW



ONE WAY SEX BOLTS

單向公母套

ONE WAY SEX BOLTS

單向公母套之材質： 鐵、白鐵、銅。
單向公母套之表面處理： 依客戶要求。
★ 其他尺寸和材質可依客戶要求訂製。

母套

螺絲

ARCHITECTURAL SEX BOLTS

建築用公母套

ARCHITECTURAL SEX BOLTS

材質：鐵、白鐵、鋁、銅。

特色 & 優點：母套頭型採半圓頭設計，搭配的螺絲採十字平頭設計、於安裝時將母套置於外露地方，
螺絲置於後方，因母套頭型無工具可拆除，具防盜功能、可安裝於多種材質之物件、
安裝容易、快速、省力且安全、可應用的範圍廣，多使用於門窗五金、建築五金

★ 其他尺寸和材質可依客戶要求訂製。



BUTTON HEAD SOCKET TROX WITH PIN SCREWS

MATERIAL AVALIABLE:
STEEL, STAINLESS STEEL, ALUMINUM, BRASS

ADOPT SPECIAL HEAD TYPE AND PUNCH ON THE DESIGN IN SCREW, HAVE SAFE, GUARD TAKE APART AND THEFT, OFFER FUNCTION PROTECTED TO DESTROY TO DEFENDING. GENERAL WRENCH SET IS ALL UNABLE TO DESMANTLE SUCH AS CROSS, STRAIGHT-LINE HEX KEY, TORX KEY ETC.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

FEMALE NUT

E SELF-DRIVING NUT

E SELF-DRIVING NUT
MATERIAL AVALIABLE:
STEEL, STAINLESS STEEL AND BRASS

ADVANTAGES:
1.INSTALL SLEEVE NUT TO ACCESS FRONT SIDE OF THE WORK PIECE & SCREW IN FROM BACK SIDE.
2.INSTALL WITHOUT ANY COMPLICATED TOOL AT ANY LOCATION ON THE ASSEMBLY.
3.INSTALL WITHOUT PRODUCING ANY HARMFUL MARK.
4.INSTALL INTO VARIES MATERIAL.
5.THE FANGS ON THE BODY CUT INTO THE APPLICATION DURING ASSEMBLY.
6.EASY, FAST & SAFE INSTALLATION.

INSTRUCTIONS OF E-SELF DRIVING NUT:
AS THE SLEEVE NUT IS STALLED, THE FANGS ON THE BODY ACTUALLY CUT INTO THE APPLICATION & PROVIDES GRIP STRENGTH. WHEN SCREW ON THE OPPOSITE SIDE HAVE DRIVEN, THE FANGS WILL GRIP APPLICATION TIGHTLY.

FEATURE OF E-SELF DRIVING NUT
(COMPARE WITH SEX BOLTS)

I. ROUND BODY WITH FANGSON IT
1.GRIP THE APPLICATION TIGHTLY
2.CANNOT BE DISASSEMBLED EASILY
3.PREVENT ANY ONE WHO INTENT TO PULL OUT

II. SCREW HEADCAN BE YOUR CHOICE
1.THE SCREW HEAD CAN BE TAMPERPROOF
2.HARDLY TO DISASSEMBLED
3.COMBINE WITH GOOD SURFACE OUTLOOK

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
