SPEED PIN RIVET DRIVE PIN RIVET

SPEED PIN RIVET / DRIVE PIN RIVET

MATERIAL AVAILABLE FOR SPEED PIN RIVET (DRIVE PIN RIVET):
BODY: ALUMINUM 2117 / STAINLESS STEEL 302 (INOX A2/18-8) / STEEL 1006
PIN: ALUMINUM 2024 / STAINLESS STEEL 304 (INOX A2/18-8) / STEEL 1022

FINISH SURFACE AVAILABLE FOR SPEED PIN RIVET (DRIVE PIN RIVET):
PLATING: CR3 WHITE ZINC PLATED/ CR3 YELLOW ZINC PLATED/ CR3 BLACK ZINC PLATED/ ANODIZED/CLEAN

ADVANTAGES OF SPEED PIN RIVET (DRIVE PIN RIVET):
1.SPEED PIN RIVET IS FAST AND EASY TO INSTALL.
2.NO SPECIAL INSTALLATION TOOL IS REQUIRED FOR SPEED PIN RIVET, JUST A HAMMER WILL DO.
3.VARIOUS MATERIALS ARE AVAILABLE FOR SPEED PIN RIVET.
4.VARIOUS HEAD STYLES ARE AVAILABLE FOR SPEED PIN RIVET.
5.SPEED PIN RIVET WILL NOT DAMAGE THE APPLICATION SURFACE
6.SPEED PIN RIVET CAN BE RUST RESISTANT.
7.SPEED PIN RIVET CAN BE APPLIED TO WIDE THICKNESS.
8.THE APPEARANCE LOOKS GOOD AFTER INSTALLATION.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
★Available Size:5/32"、5/16"、3/16"、3/8"、1/8"、1/4"、

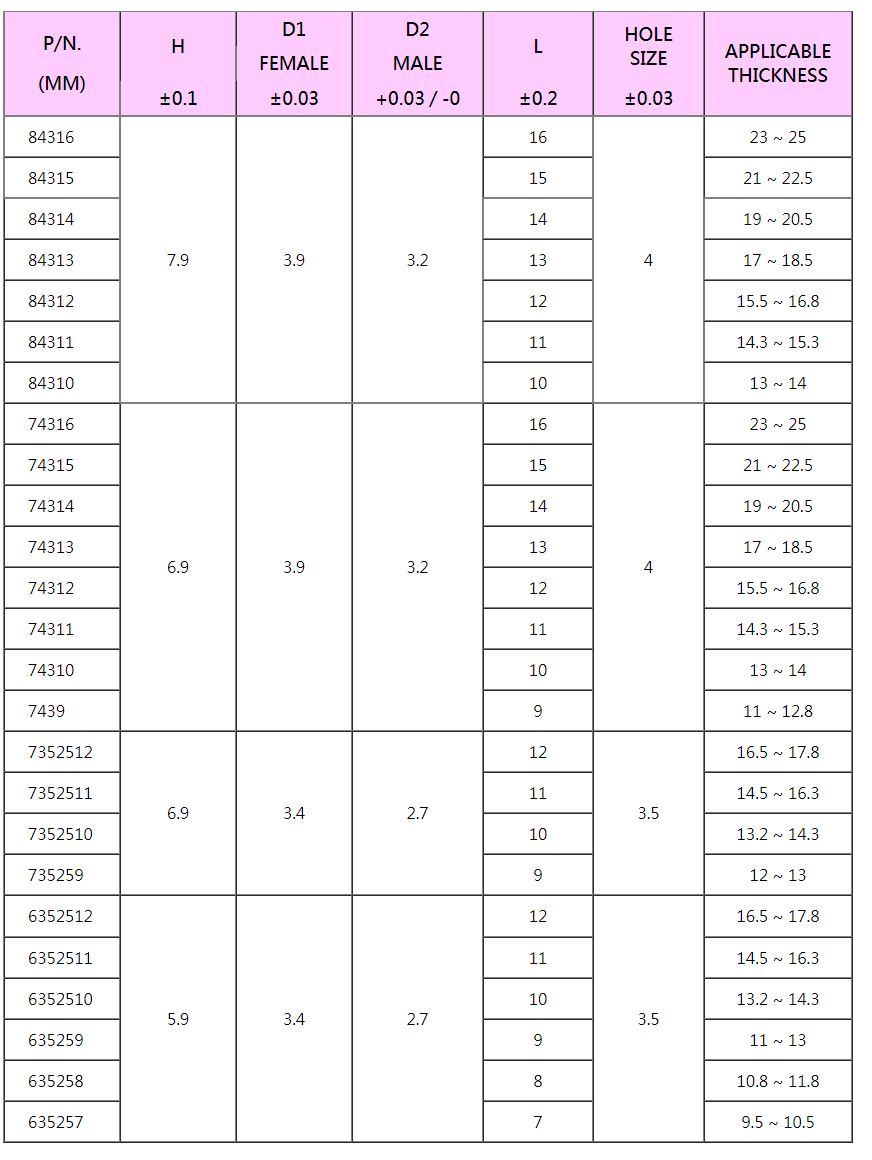

MALE FEMALE RIVET

MALE FEMALE RIVET

MATERIAL: ALUMINUM 5052 BRASS 2600 STAINLESS STEEL 302 / 410

APPLICATION : TABLEWARE

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST





REBITADOR MANUAL

REBITADOR MANUAL



WEIGHT：0.6kg (1.32lb)
RIVET SIZE：2.4mm(3/32"),3.2mm(1/8"),4.0mm(5/32"),4.8mm(3/16").

RIVET MATERIAL：ALUMINUM & BRASS

RIVET FETURE：
1.INSTALL WITHOUT PRODUCING ANY HARMFUL MARK.
2.EASY, FAST & SAFE INSTALLATION.

STAINLESS STEEL & STEEL BLIND RIVET TS.SSAS. SERIES

STAINLESS STEEL / STEEL BLIND RIVET
TS.SSAS SERIES

MATERIAL AVALIABLE:
RIVET: STAINLESS STEEL 302/ 316 (INOX A2/ A4/ 18-8/ 18-10)
SHAFT: STEEL 1018~1022

FINISH SURFACE AVALIABLE:
RIVET: SELF COULOURED
SHAFT: CR3 WHITE ZINC PLATED/ CR3 YELLOW ZINC PLATED

ADVANTAGES OF SS-S BLIND RIVET:
1.PROVIDE STRONG HOLDING FOR APPLICATION.
2.LOW IN COST COMPARE WITH BOLT AND NUT.
3.IDEAL FOR WIDE RANGE APPLICATION.
4.AVAILABLE IN DOME, COUNTERSUNK OR LARGE FLANGE STYLE.
5.FAST AND EASY TO INSTALL.
6.PROVIDE HIGH TENSILE AND SHEAR STRENGTH COMPARE WITH ALUMINUM OR STEEL.
7.IDEAL FOR RUST RESISTANCE APPLICATION.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



ALL STAINLESS STEEL BLIND RIVET TS. SSASS. SERIES

ALL STAINLESS STEEL BLIND RIVET
TS.SSASS SERIES

MATERIAL AVALIABLE:
RIVET: STAINLESS STEEL 302/ 316 (INOX A2/ A4/ 18-8/ 18-10)
SHAFT: STAINLESS STEEL 302/ 316 (INOX A2/ A4/ 18-8/ 18-10)

FINISH SURFACE AVALIABLE:
RIVET: SELF COULOURED
SHAFT: SELF COULOURED

ADVANTAGES OF SS-S BLIND RIVET:
1.PROVIDE STRONG HOLDING FOR APPLICATION.
2.LOW IN COST COMPARE WITH BOLT AND NUT.
3.IDEAL FOR WIDE RANGE APPLICATION.
4.AVAILABLE IN DOME, COUNTERSUNK OR LARGE FLANGE STYLE.
5.FAST AND EASY TO INSTALL.
6.PROVIDE HIGH TENSILE AND SHEAR STRENGTH COMPARE WITH ALUMINUM OR STEEL.
7.IDEAL FOR RUST RESISTANCE APPLICATION.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



ALL STEEL BLIND RIVET TS.SAS. SERIES

ALL STEEL BLIND RIVET
TS.SAS. SERIES

MATERIAL AVALIABLE:
RIVET: STEEL 1006
SHAFT: STEEL 1018~1022

FINISH SURFACE AVALIABLE:
PLATING: CR3 WHITE/ YELLOW/ BLACK ZINC PLATED/ CR3 ZINC NICKEL PLATED...ETC
COLOURED: YELLOW/ RED/ BLACK/ WHITE...ETC.

ADVANTAGES OF S-S BLIND RIVET:
1.PROVIDE STRONG HOLDING FOR APPLICATION.
2.LOW IN COST COMPARE WITH BOLT AND NUT.
3.IDEAL FOR WIDE RANGE APPLICATION.
4.AVAILABLE IN DOME, COUNTERSUNK OR LARGE FLANGE STYLE.
5.FAST AND EASY TO INSTALL.
6.PROVIDE HIGH TENSILE AND SHEAR STRENGTH COMPARE WITH ALUMINUM.
7.IDEAL FOR RUST RESISTANCE APPLICATION.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST





STRETCH FOLDING BLIND RIVET ( TRI FOLD BLIND RIVET )

STRETCH FOLDING BLIND RIVET
( TRI FOLD BLIND RIVET )

MATERIAL AVALIABLE:
RIVET: ALUMINUM 5050
MANDREL: ALUMINUM 5056

POSITIVE: RATTLE FREE FASTENER

CORROSION RESISTANT:
ALL ALUMINUM CONSTRUCTION

MULTIGRIP:
ADJUSTS TO A WIDE VARIATION OF SUBJECT'S THICKNESS.
FINISH AVAILABLE IN A MULTIPLE COLOR.

SUITABLE APPLICATIONS:
SUPPORTS BRTTLE THIN SOFT OR DUCTILE MATERIALS & FUNCTIONS WHEN USED WITH OVERSIZED, ISALIGNED OR IRREGULARLY SHAPED HOLES.
THE STRETCH FOLDING BLIND RIVET FORMS THREE LARGE FOLDING LEGS THAT CREATE EXCELLENT CLAMPOING-UP & A LARGE BLIND SIDE BEARING SURFACE.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST





HIGH SHEAR STRENGTH BLIND RIVET

HIGHT SHEAR STRENGTH BLIND RIVET







MATERIAL AVALIABLE:
RIVET: STEEL
SHAFT: STEEL

ADVANTAGES OF HIGH SHEAR STRENGTH BLIND RIVER:
1.EASY & FAST INSTALLATION
2.HIGH FASTENING STRENGTH
3.THE MANDREL WILL BE CUT OFF OUTSIDE OF BODY AFTER RIVETING FOR INCREASING THE SHEAR STRENGTH
4.THE SHEAR STRENGTH IS ALMOST TWICE THAN THE ORIGINAL RIVET
5.SUITABLE FOR CONTAINER, BODY WORK, ELECTRIC CABINET, AND CONCTRUCTION ETC.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

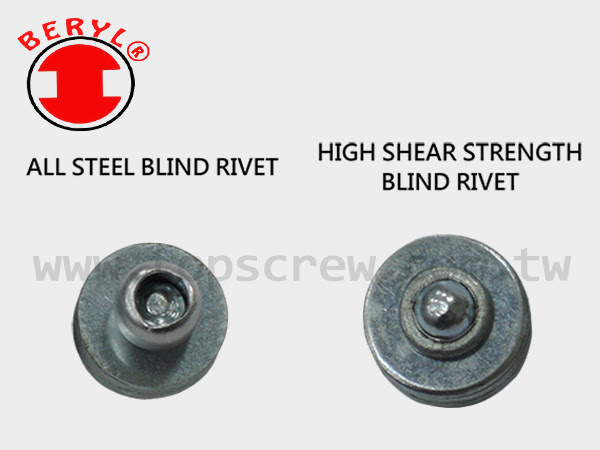

ALL STEEL BLIND RIVET V.S. HIGH SHEAR STRENGTH BLIND RIVER
HEAD

SIDE

INSPECTION REPORT OF SHEAR STRESS



ALUMINUM & STEEL BLIND RIVET TS.AAS..txt

ALUMINUM / STEEL BLIND RIVET
TS.AAS. SERIES



MATERIAL AVALIABLE:
RIVET: ALUMINUM 5050
SHAFT: STEEL 1018~1022

FINISH SURFACE AVALIABLE:
RIVET: SELF COULOUR/ COLOURED IN YELLOW/ BLACK/ WHITE/ RED...ETC
SHAFT: CR3 WHITE ZINC PLATED/ CR3 YELLOW ZINC PLATED

ADVANTAGES OF AL-ST BLIND RIVET:
1.PROVIDE STRONG HOLDING FOR APPLICATION.
2.LOW IN COST COMPARE WITH BOLT AND NUT.
3.IDEAL FOR WIDE RANGE APPLICATION.
4.AVAILABLE IN DOME, COUNTERSUNK OR LARGE FLANGE STYLE.
5.FAST AND EASY TO INSTALL.
6.IDEAL FOR RUST RESISTANCE APPLICATION.
7.IDEAL FOR LIGHT WEIGHT USAGE.

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

SQUARE BLIND JACK NUT

SQUARE BLIND JACK NUT

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

1.The Square Blind Jack Nut is an economical blind fastener designed for assembly lind use in THIN, SOFT or BRITTLE materials.
2.When tightened, their body collapses to form legs which grip the inside of the mounting surface, leaving a permanent reusable threaded insert.
3.Standard blind jack nut are manufactured of steel with a commercial zinc plating.
4.All blind jack nuts can be supplied with brass coated which assist galvanic corrosion concerns.

MATERIAL AVAILABLE : STEEL, STAINLESS STEEL304, BRASS

FEATURES：
1.FASTENS IN BLIND HOLES
2.FASTENS SECURELY DESPITE BURRS & UNEVEN SUBSTRATES
3.NOT HOLE SIZE SENSITIVE
4.SUITABLE FOR WIDE GRIP RANGE

STAINLESS STEEL BLIND JACK NUT

STAINLESS STEEL BLIND JACK NUT

HOW TO SOLVE?
YOU JUST NEED OUR PRODUCT
☆ STAINLESS STEEL BLIND JACK NUT ☆
The Blind Jack Nut is an economical blind fastener designed for assembly lind use in THIN, SOFT or BRITTLE materials. When tightened, their body collapses to form legs which grip the inside of the mounting surface, leaving a permanent reusable threaded insert.

ADVANTAGE FOR STAINLESS STEEL BLIND JACK NUT:
AVOID CORROSION, PREVENT RUST, SUITABLE FOR OUTDOOR

FEATURES FOR BLIND JACK NUT:
1.FASTENS IN BLIND HOLES
2.FASTENS SECURELY DESPITE BURRS & UNEVEN SUBSTRATES
3.NOT HOLE SIZE SENSITIVE
4.SUITABLE FOR WIDE GRIP RANG

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
INSTALLATION STEPS FOR BLIND JACK NUT:



BLIND JACK NUT

BLIND JACK NUT

The Blind Jack Nut is an economical blind fastener designed for assembly lind use in THIN, SOFT or BRITTLE materials.
When tightened, their body collapses to form legs which grip the inside of the mounting surface, leaving a permanent reusable threaded insert.
Standard blind jack nut are manufactured of steel with a commercial zinc plating.
All blind jack nuts can be supplied with brass coated which assist galvanic corrosion concerns.

MATERIAL AVAILABLE :
STEEL, STAINLESS STEEL304, BRASS FEATURES：
1.FASTENS IN BLIND HOLES
2.FASTENS SECURELY DESPITE BURRS & UNEVEN SUBSTRATES
3.NOT HOLE SIZE SENSITIVE
4.SUITABLE FOR WIDE GRIP RANGE

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

BLIND JACK NUT TOOL

BLIND JACK NUT TOOL





BOLT (SCREW) RIVET NUT IN ISO DIMENSION (MM)

BOLT (SCREW) RIVET NUT
IN ISO DIMENSION (MM)

MATERIALS ARE AVAILABLE FOR BOLT RIVET NUT:
STAINLESS STEEL 302/304 (A2/18-8), 316(A4/18-10), STEEL, ALUMINUM 5056/6061, BRASS C2600

CHARACTERISTCS OF BOLT (SCREW) RIVET NUT:
1.EASY AND FAST IN INSTALLATION WITH HANDY TOOL.
2.PROVIDES HIGH TORQUE AND STRONG THREADS IN COMPARING WITH NORMAL FASTENERS.
3.WELDING PROCESS IN NOT REQUIRED IN INSTALLING BOLT (SCREW) RIVET NUT.
4.ABLE TO REDUCE ASSEMBLING TIME AND IMPROVE OUTPUT.
5.ABLE TO PROVIDE A STRONG BINDING SUPPORT ON COMBINATION APPLICATIONS.
6.WILL NOT LOOSEN FROM VIBRATING OBJECTS ONCE ITS' INSTALLED.
7.BOLT (SCREW) IS ALREADY COMBINED WITH BLIND RIVET NUT BEFORE INSTALLATION, SO IT IS NOT NECESSARY TO INSTALL THE SCREW ON THE BLIND RIVET NUT.
8.COMBINED RIGIDLY TO SUIT VIBRATING ENVIRONMENT.
9.AVAILABLE IN BOTH UNC AND ISO DIMENSION.

★ OTHER SIZES AVAILABLE:
TOP SCREW IS ABLE TO MANUFACTURE OTHER SIZES OF BOLT (SCREW) RIVET NUT APART FROM THE SIZES SHOWN IN TABLE BELOW. TOP SCREW IS ABLE TO MANUFACTURE BOLT (SCREW) RIVET NUT BASED ON THE STANDARD CYLINDRICAL, FULL HEXAGONAL AND HALF HEXAGONAL BLIND RIVET NUT IN TOP SCREW'S CATALOG. TOP SCREW IS ALSO CAPABLE FOR CUSTOMIZED SCREW (BOLT) RIVET NUT TO FULFILL YOUR REQUIREMENT FROM DESIGNING, RECOMMENDING AND OF COURSE MANUFACTURING.

NOTE 1: GRIP RANGE CAN BE AFFECTED BY PARENT MATERIAL DENSITY AND ACTUAL HOLE SIZE. WE SUGGEST TRIAL INSTALLATIONS TO DETERMINE OPTIMUM GRIP.
NOTE 2: ADDITIONAL UNF FINE THREADS, GRIP LENGTHS AND MATERIALS ARE AVAILABLE. PLEASE CONTACT TOP SCREW METAL CORP. FOR MORE DETAIL.

THREAD SPECIFICATION:
Unified - 2A/21 per ASME B1.1
Metric ­– 6g/21 per ASME 1.21M

★ OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST



BOLT (SCREW) RIVET NUT
IN UNC DIMENSION (INCH)
