SELF CLINCHING SERIES

SELF CLINCHING SERIES

TSC1 SELF CLINCHING STANDOFFS

★STANDOFFS：

USED WHERE IT IS NECESSARY TO STACK OR SPACE COMPONENTS AWAY FROM THE PANEL. THRU-THREADED OR BLIND TYPES ARE GENERALLY STANDARD.

TSC4 SELF CLINCHING NUTS

★NUTS：

NUTS WITH THREAD STRENGTHS GREATER THAN MILD STEEL SCREWS ARE COMMONLY USED WHEREVER STRONG INTERNAL THREADS ARE NEEDED FOR COMPONENT ATTACHMENT OF FABRICATION ASSEMBLY.

TSC5 SELF CLINCHING LOCK NUTS

★NUTS：

NUTS WITH THREAD STRENGTHS GREATER THAN MILD STEEL SCREWS ARE COMMONLY USED WHEREVER STRONG INTERNAL THREADS ARE NEEDED FOR COMPONENT ATTACHMENT OF FABRICATION ASSEMBLY.

TSC6 SELF CLINCHING STUDS

★STUDS：

EXTERNALLY THREADED FASTENERS WHICH ARE USED WHERE THE ATTACHMENT MUST BE POSITIONED BEFORE BEING FASTENED.

TSC7 SELF CLINCHING STANDOFFS

★STANDOFFS：

USED WHERE IT IS NECESSARY TO STACK OR SPACE COMPONENTS AWAY FROM THE PANEL. THRU-THREADED OR BLIND TYPES ARE GENERALLY STANDARD.

TSC8 SELF CLINCHING NUTS

★NUTS：

NUTS WITH THREAD STRENGTHS GREATER THAN MILD STEEL SCREWS ARE COMMONLY USED WHEREVER STRONG INTERNAL THREADS ARE NEEDED FOR COMPONENT ATTACHMENT OF FABRICATION ASSEMBLY.

ADVANTAGES OF CLINCHING PARTS:

• MAY BE INSTALLED USING ANY PARALLEL ACTING SQUEEZING FORCE.
• PROVIDE HIGH PUSHOUT AND TORQUE-OUT RESISTANCE.
• DO NOT REQUIRE SPECIAL HOLE PREPARATION, SUCH AS CHAMFERING AND DEBURRING.
• REVERSE SIDE OF METAL SHEET REMAINS FLUSH.
• NO RETAPPING NECESSARY AFTER APPLICATION.
• LOW INSTALLED COSTS.







  MORE DETAIL:

  PLEASE ENTER OUR WEBSITE

  www.imperialrivet.com

STAINLESS STEEL BLIND JACK NUTS

FOR LATEST TYPE LICENSE PLATE

The latest type license plates’ width and height are different from the original license plate. In addition, when you replace the license plate, you find that the holes place of the latest type license plate and the bodywork are not matched.

HOW TO SOLVE ?

YOU JUST NEED

OUR PRODUCT

☆ STAINLESS STEEL BLIND JACK NUT ☆

THE BLIND JACK NUT IS AN ECONOMICAL BLIND FASTENER. WHEN TIGHTENED, THEIR BODY COLLAPSES TO FORM LEGS WHICH GRIP THE INSIDE OF THE MOUNTING SURFACE, LEAVING A PERMANENT REUSABLE THREADED INSERT.

ADVANTAGE FOR STAINLESS STEEL BLIND JACK NUT:

•      PREVENT RUST

•      AVOID CORROSION

•      SUITABLE FOR OUTDOOR

FEATURES FOR BLIND JACK NUT:

•    FASTENS IN BLIND HOLES

•    FASTENS SECURELY DESPITE BURRS & UNEVEN SUBSTRATES

•    NOT HOLE SIZE SENSITIVE

•    SUITABLE FOR WIDE GRIP RANG



  More Detail : please enter

  OUR WEBSITE

  www.imperialrivet.com



Binding Post Screw

Binding Post Screw

Binding Post also call Chicago screws, Chicago screw posts, bookbinding screws are great for binding your documents.

Using one or two holes can replace binders and save precious space when archiving your documents.

Place a chicago screw in the corner of your marketing material for a smart, economical and elegant finish.

ALUMINUM BLINDING POST SCREW

BRASS BLINDING POST SCREW

TRUSS COMBO HEAD POST SCREW - 1

TRUSS COMBO HEAD POST SCREW - 2

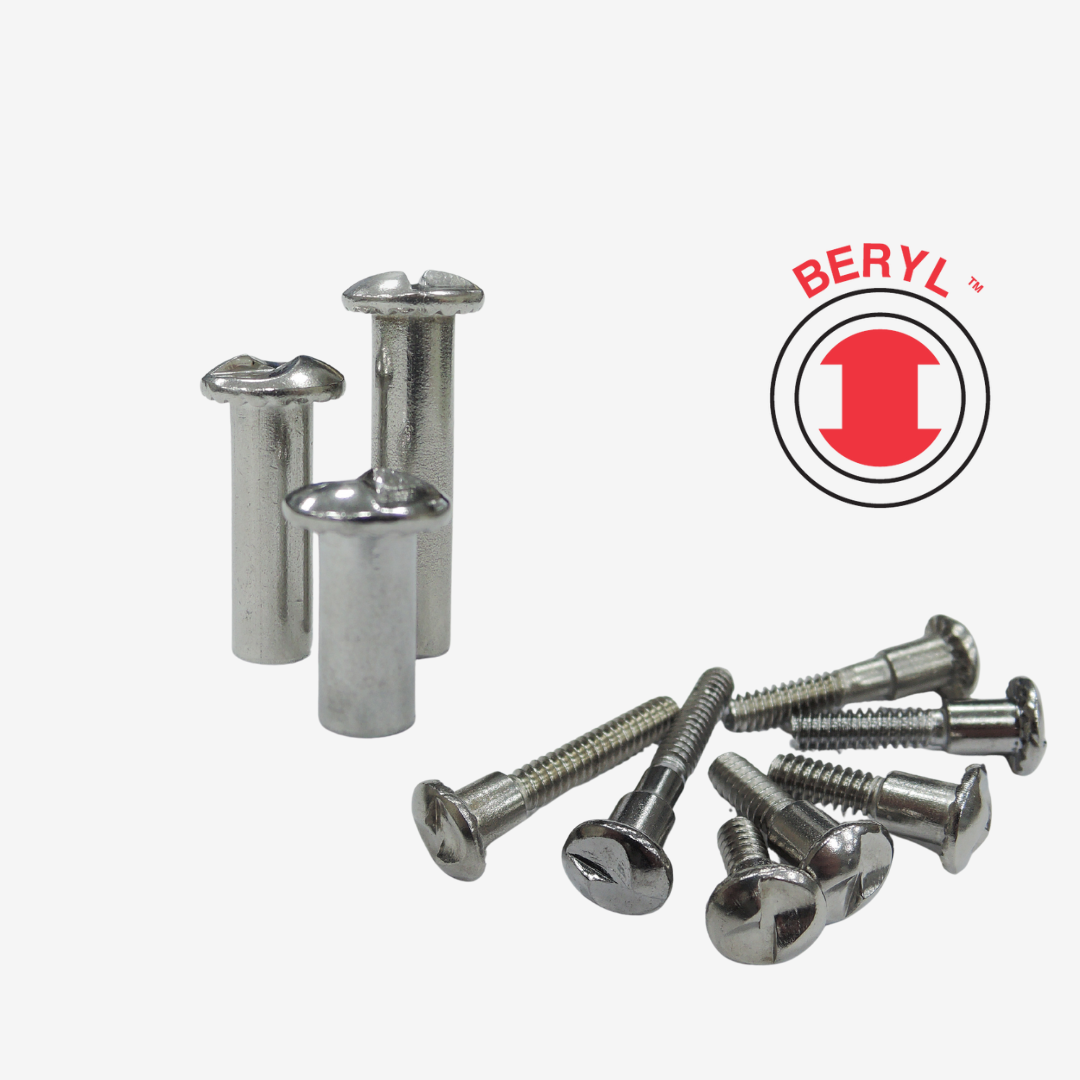

ONE WAY SEX BOLTS

SIX LOBE WITH PIN OR WITHOUT PIN SEX BOLTS

NEW PRODUCT

E SELF-DRIVING NUT

More Detail : please enter

OUR WEBSITE

www.imperialrivet.com

EXPANSION ANCHOR

EXPANSION ANCHOR

FEATURES OF ANCHOR BOLT:

l   EASY TO INSTALL

l   HIGH LOAD CAPACITIES EVEN IN THE LOW DENSITY BASE MATERIAL

l   WITHOUT THERMAL BRIDGE

l   QUICK INSTALLATION

l   DOUBLE SAFETY FEATURES

l   MATERIAL ELECTROPLATED AND GALVANIZED

INSTALLATION:

ADVANTAGE & BENEFIT OF ANCHOR BOLT:

l   INVISIBLE FROM FRONT OF FAÇADE

l   STRESS-FREE FIXING IN NATURAL STONE

l   MAXIMU POSSIBLE PULL-OUT LOEAD HIGH COLLAPSE LOADS THAN TRADITIONAL SYSTEM

l   FAST & EASY INSTALLATION OF REVEAL

l   STATIC OPTIMISED POSITION OF ANCHOR THE MAX. BENDING STRESS IS REDUCED BY 50%

FIELDS OF APPLICATION:

l   CURTAIN WALL INSTALLATION

l   BUILDING CURTAIN GLASS INSTALLATION

l   MARBLE INSTALLATION

l   STRENGTHENED GLASS INSTALLATION

EXAMPLE:

SPEED (DRIVE) PIN RIVET

HAMMER DRIVE ANCHOR

SPEED (DRIVE) PIN RIVET

MATERIAL AVAILABLE FOR SPEED (DRIVE) PIN RIVET :

BODY : ALUMINUM 2117 / STAINLESS STEEL 302 (INOX A2/18-8)
  PIN   : ALUMINUM 2024 / STAINLESS STEEL 304 (INOX A2/18-8)

FINISH SURFACE AVAILABLE FOR SPEED (DRIVE) PIN RIVET :

PLATING:

• CR3 WHITE ZINC PLATED
• CR3 YELLOW ZINC PLATED
• CR3 BLACK ZINC PLATED
• ANODIZED
• CLEAN

ADVANTAGES OF SPEED (DRIVE) PIN RIVET :

• SPEED PIN RIVET IS FAST AND EASY TO INSTALL.
• NO SPECIAL INSTALLATION TOOL IS REQUIRED FOR SPEED PIN RIVET, JUST A HAMMER WILL DO.
• VARIOUS MATERIALS ARE AVAILABLE FOR SPEED PIN RIVET.
• VARIOUS HEAD STYLES ARE AVAILABLE FOR SPEED PIN RIVET.
• SPEED PIN RIVET IS EASY TO UNINSTALL, AND IT WILL NOT DAMAGE THE APPLICATION SURFACE
• SPEED PIN RIVET CAN BE RUST RESISTANT.
• SPEED PIN RIVET CAN BE APPLIED TO WIDE THICKNESS.
• THE APPEARANCE LOOKS GOOD AFTER INSTALLATION.

MULTIGRIP BLIND RIVET

BLIND THREADED RIVET

HIGH STRENGTH

MULTIGRIP BLIND RIVET

TM SERIES

MATERIAL AVAILABLE FOR MULTI-GROP BLIND RIVETS:

RIVET BODY MATERIAL : ALUMINUM 5052.

MANDREL MATERIAL : STEEL / ZINC PLATED.

SUITABLE APPLICATION:

• AUTOMOBILES, MOTORCYCLES, ELECTRICAL APPLIANCES, LIGHTING FIXTURES, ETC.

• MAKES THE GAP OF JOINING OBJECTS EXPAND FIRST THEN RIVETS THEM CLOSELY.

• IT WILL NOT BE LOOSENED BY SHANK.

• THE INNER AND OUTER JOINS ARE GOOD LOOKING.

• HELPS REDUCE STOCK RANGE.

• PARTICULAR DOME HEADS ACCEPTABLE.

• FINISH AVAILABLE IN A MULTIPLE OF COLORS.

-OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST

JACK NUTS FOR LATEST TYPE LICENSE PLATE

STAINLESS STEEL BLIND JACK NUTS

FOR LATEST TYPE LICENSE PLATE

The latest type license plates’ width and height are different from the original license plate. In addition, when you replace the license plate, you find that the holes place of the latest type license plate and the bodywork are not matched.

HOW TO SOLVE?

YOU JUST NEED OUR PRODUCT

☆ STAINLESS STEEL BLIND JACK NUT ☆

THE BLIND JACK NUT IS AN ECONOMICAL BLIND FASTENER. WHEN TIGHTENED, THEIR BODY COLLAPSES TO FORM LEGS WHICH GRIP THE INSIDE OF THE MOUNTING SURFACE, LEAVING A PERMANENT REUSABLE THREADED INSERT.

ADVANTAGE FOR STAINLESS STEEL BLIND JACK NUT:

• AVOID CORROSION

• PREVENT RUST

• SUITABLE FOR OUTDOOR

FEATURES FOR BLIND JACK NUT:

• FASTENS IN BLIND HOLES

• FASTENS SECURELY DESPITE BURRS & UNEVEN SUBSTRATES

• NOT HOLE SIZE SENSITIVE

• SUITABLE FOR WIDE GRIP RANG

INSTALLATION STEPS FOR BLIND JACK NUT:

IMPERIAL RIVETS & FASTENERS CO., INC.,

www.imperial.com

topscrew@ms8.hinet.net

T: 886-4-7237159

F: 886-4-7246640

TSC5 SELF CLINCHING LOCK NUT

SELF CLINCHING PARTS

TSC5 SELF CLINCHING LOCK NUT

MATERIAL AVAILABLE FOR SELF CLINCHING LOCK NUT:

STEEL, STAINLESS STEEL, ALUMINUM AND BRASS

ADVANTAGES OF CLINCHING PARTS:

1. PROVIDE STRONG THREADS IN METAL AS THIN AS 020" / .51 MM.

2. MAY BE INSTALLED USING ANY PARALLEL ACTING SQUEEZING FORCE.

3. PROVIDE HIGH PUSHOUT AND TORQUE-OUT RESISTANCE.

4. DO NOT REQUIRE SPECIAL HOLE PREPARATION, SUCH AS CHAMFERING AND DEBURRING.

5. REVERSE SIDE OF METAL SHEET REMAINS FLUSH.

6. NO RETAPPING NECESSARY AFTER APPLICATION.

7. LOW INSTALLED COSTS.

 - NUTS

NUTS WITH THREAD STRENGTHS GREATER THAN MILD STEEL SCREWS ARE COMMONLY USED WHEREVER STRONG INTERNAL THREADS ARE NEEDED FOR COMPONENT ATTACHMENT OF FABRICATION ASSEMBLY.

-OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
